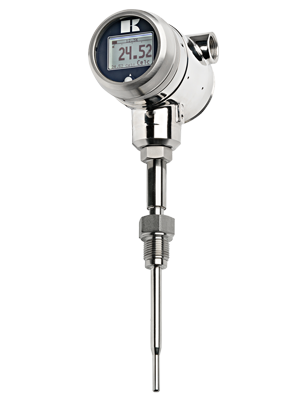

Intelligent Temperature Transmitter TT-4000

All stainless steel microprocessor based temperature transmitter. Standard with display and unique programming button. Very suitable for accurate temperature measurement and reading.



Features

  • Easy adjustable with programming button
  • All stainless steel
  • Standard graphic display with backlight
  • Hygienic connections
  • Option HART, Profibus PA and ATEX Ex-ia



Technical details

 Measuring range sensor   -50 °C…+200 °C
 Accuracy  0.1 % (Optional 0.075 %)
 Insertion dimensions  Diameter 3….20 mm, length 5 mm…4 m
 Process connections  Threaded, hygienic connections EHEDG and 3A, flanges
 Pt100 element  3-wire, 1/3 DIN class B
 Output  4-20 mA 2-wire, Option HART protocol, Profibus PA
 Adjustment  With programming button and display, without test temperature or with HART
 Display  Multilingual, with bargraph, backlight
 Power supply  12 - 36 Vdc (ATEX: 12 - 30 Vdc)
 Protection  IP66
 Ambient temperature  -20 °C...+70 °C
 Wetted parts  AISI 316
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals  Explosion safety: ATEX Ex-ia and IECEx Ex-ia



Applications

Temperature measurement in tanks and conduits.



Accessories

  • Welding nipples for several connections
  • Pockets and thermowells
