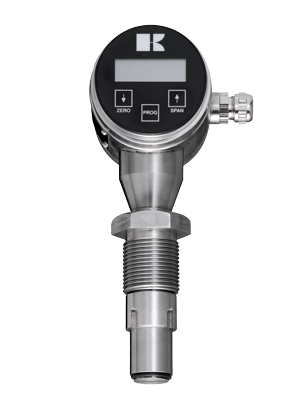

Intelligent Pressure Transmitter 2000 with metallic diaphragm

The all stainless series 2000 pressure transmitter has a flush diaphragm. Suitable for vacuum and pressure measurement on liquids and gasses. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • All stainless steel housing
  • Easy adjustable using 3 push buttons, without test pressure
  • Strong flush diaphragm
  • Active temperature compensation
  • Option HART protocol



Technical details

 Measuring range min. max.  0,1…100 bar, optie 1000 bar
 Process temperature  -20 °C…+80 °C
 Accuracy  0,1 % of adjusted span
 Process connections  1” BSP and pulp- and paper connections with flush diaphragm, all current threaded connections
 Turn down  10:1
 Output  4-20 mA 2-wire, option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc (Ex: 12 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia
 Marine approvals : Lloyd's, DNV, BV, CCS, ABS,
 Functional safety : SIL2



Applications

Absolute and relative pressure measurement of gas and liquids. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry specific process connections are available.



Accessories

  • Welding nipples for several connections
