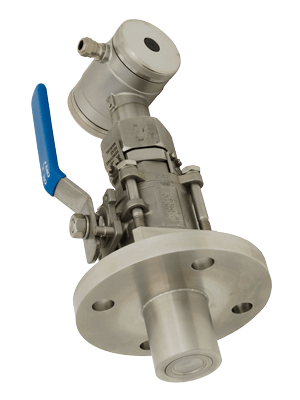

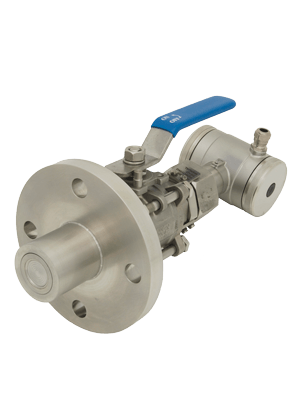

Intelligent Pressure Transmitter 2000-VALVE

The series 2000-valve is an all stainless pressure transmitter fitted in a valve. The transmitter with flush diaphragm can be removed from the process during operation. Zero and span can be adjusted internally. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • Removable during operation
  • All stainless construction
  • Strong flush diaphragm
  • Easy adjustable using 3 push buttons, without test pressure
  • Valves 1” en 1,5”



Technical details

 Measuring range min. max.  0,1…10 bar
 Process temperature  -20 °C…+85 °C
 Accuracy  0,1 % of adjusted span
 Process connections  Threaded connections, flanges and welding flange
 Turn down  10:1
 Output  4-20 mA 2-wire, Option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C, Tantalum or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316



Applications

Pressure measurement mainly for clogging media where a flush diaphragm is needed. For example in the pulp and paper industry. The Transmitter can easily be removed from the process for cleaning and calibration.
