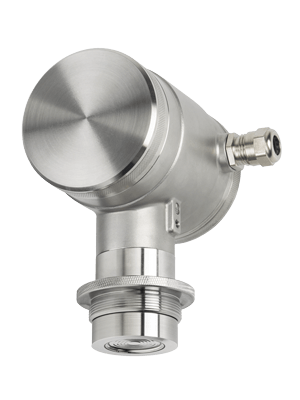

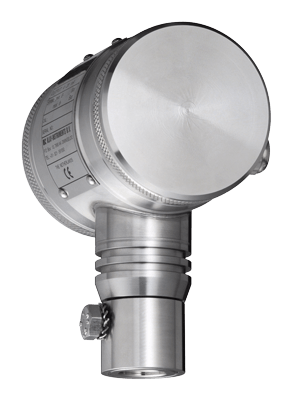

The all stainless series 2000 pressure transmitter has a flush diaphragm. Suitable for hydrostatic level measurement on liquids. This microprocessor based transmitter can easily be programmed using the three push buttons and display.
Features
- All stainless steel housing
- Easy adjustable using 3 push buttons, without test pressure
- Strong flush diaphragm
- Active temperature compensation
- Tank linearisation
Technical details
| Measuring range min. max. | 0,1…100 bar |
| Process temperature | -20 °C…+80 °C |
| Accuracy | 0,1 % of adjusted span |
| Procesaansluitingen | 1” BSP and pulp- and paper connections with flush diaphragm, all current threaded connections |
| Turn down | 10:1 |
| Output | 4-20 mA 2-wire, option HART protocol |
| Adjustment | With 3 push buttons and display, without test pressure or with HART |
| Power supply | 12 - 36 Vdc (Ex: 12 - 26,5 Vdc) |
| Protection | IP66 (option IP68) |
| Ambient temperature | -20 °C...+70 °C |
| Diaphragm material | AISI 316L, option Hastelloy C or Gold plated |
| Wetted parts | AISI 316L |
| Electronics housing | AISI 304, option AISI 316 |
| Certificates/approvals |
Explosion safety: ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia |
Applications
Non hygienic level measurement of liquids where a flush diaphragm is needed. Examples are water, wastewater and oil. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry specific process connections are available.
Accessories
- Welding nipples for several connections
