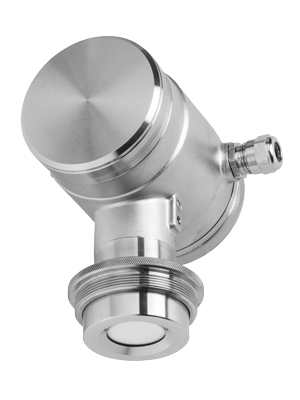

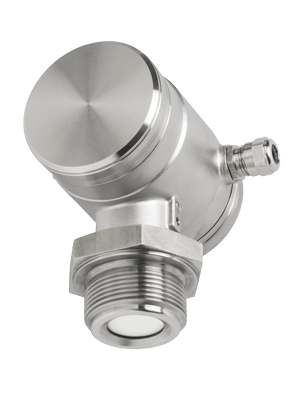

Intelligent pressure transmitter 3000-SAN with flush mounted ceramic sensor

The all stainless series 3000-SAN pressure transmitter has a flush mounted capacitive ceramic sensor. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry when a Ceramic sensor is preferred. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • All stainless steel housing
  • Easy adjustable using 3 push buttons, without test pressure
  • Strong flush mounted capacitive ceramic sensor
  • Active temperature compensation
  • Option HART protocol



Technical details

 Measuring range min. max.   0.1…50 bar
 Process temperature  -20 °C… +100 °C (140 °C /30 min.)
 Accuracy  0.2 % of adjusted span, option 0.1 %

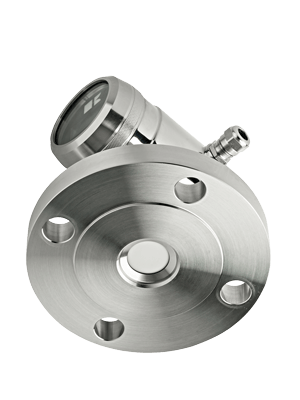

 Process connections  Hygienic connections, flanges and threaded connections
 Turn down  10:1
 Output  4-20 mA 2-wire, option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Sensor material  Ceramic (Al2O3) 99,9%
 Other wetted parts  AISI 316L, option Hastelloy C
 Electronics housing  AISI 304, option AISI 316



Applications

Absolute and relative pressure measurement of liquids, pastes and slurries where a flush sensor is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.



Accessories

  • Welding nipples for several connections
