Intelligent Temperature Transmitter TT-2000

All stainless steel microprocessor based temperature transmitter. Standard with display and push buttons for programming. Very suitable for an accurate temperature measurement.



Features

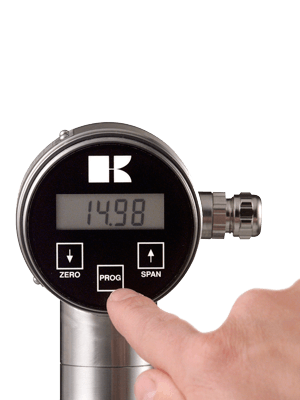

  • Easy adjustable with 3 push buttons
  • All stainless steel
  • Standard with display
  • Hygienic connections
  • Option HART and ATEX/IECEx Ex-ia



Technical details

 Measuring range  -50 °C…+200 °C
 Accuracy  0,1 %
 Insertion dimensions  Diameter 3….20 mm, length 5 mm…4 m
 Process connections  Threaded, hygienic connections EHEDG and 3A, flanges
 Pt100 element  3-wire, 1/3 DIN class B
 Output  4-20 mA, 2-wire, Option HART protocol
 Adjustment  With 3 push buttons and en display, without test temperature of with HART
 Power supply  12 - 36 Vdc (Ex: 12 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Wetted parts  AISI 316
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX Ex-ia and IECEx Ex-ia



Applications

Temperature measurement in tanks and conduits.



Accessories

  • Welding nipples for various connections
  • Pockets and thermowells
