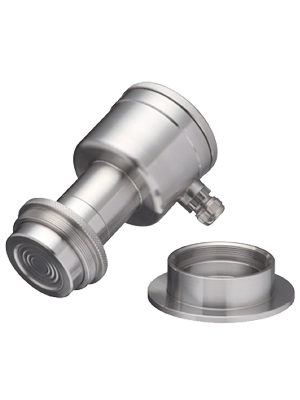

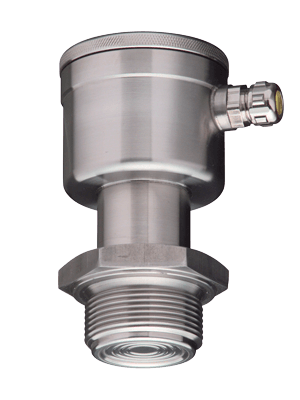

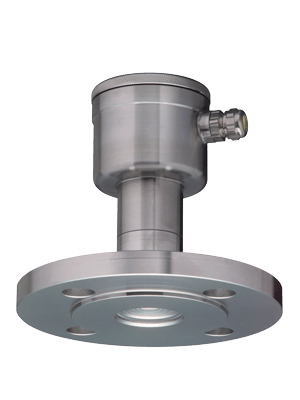

Level Transmitter 8000-SAN with metallic diaphragm

The all stainless series 8000-SAN level transmitter has a flush diaphragm. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry. Zero and span can be adjusted internally.



Features

  • All stainless steel housing
  • Active temperature compensation
  • Strong flush diaphragm
  • Zero and span adjustable
  • Many hygienic process connections, also EHEDG and 3-A certified



Technical details

 Measuring range min. max.  0,04…100 bar
 Process temperature  -20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C
 Accuracy  0,2 % of adjusted span
 Process connections  Hygienic connections, flanges and threaded connections, all with flush diaphragm
 Turn down  4:1
 Output  4-20 mA, 2-wire
 Adjustment  Zero and span internally adjustable
 Power supply  12 - 36 Vdc (Ex: 13 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -30 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C, Tantalum or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX Ex-ia, IECEx Ex-ia and EAC Ex-ia
 Sanitary standard : EHEDG, 3-A
 Marine approvals : Lloyd's, DNV, BV, CCS, ABS, KR
 Functional safety : SIL2



Applications

Hydrostatic level measurement of liquids where a flush diaphragm is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.



Accessories

  • Welding nipples for several connections
