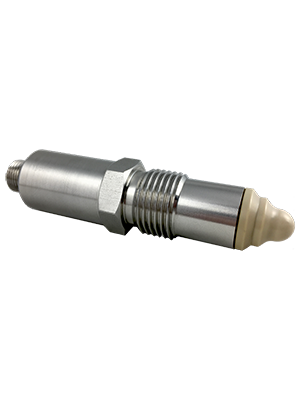

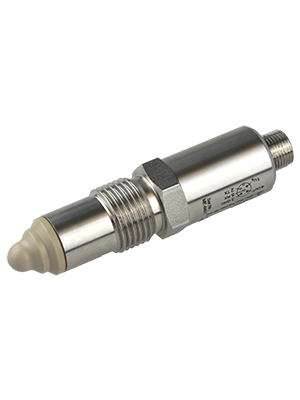

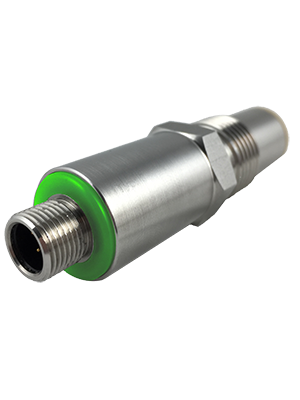

Very compact level switch with hygienic process connection. This switch is microprocessor based and has an integrated interface. Application in the food&dairy and pharmaceutical industry.
Features
- Robust and compact
- FDA and EHEDG conformity
- Suitable for CIP /SIP cleaning
- Adjustable with software
- LED indication
Technical details
| Insertion length | 14 mm |
| Process temperature | 0…+100 °C, 130 °C/1 hr |
| Pressure | Max. 10 bar |
| Process connections | ½“ BSP with hygienic socket and sanitary connections |
| Output | PNP, NPN or Push Pull switchable |
| Output indication | External LED |
| Sensivity | Programmable with PC, interface and software |
| Power supply | 18 - 32 Vdc |
| Protection | IP68 |
| Material sensor | PEEK |
| Material housing | AISI 316L |
| Ambient temperature | -10 °C…+70 °C |
Applications
Suitable for application on mainly aqueous fluids like for example milk, beer and CIP Deployable in various industries as minimum or maximum level detection and dry run protection of pumps. The sanitary connection makes is very suitable for the food&dairy and pharmaceutical industry.
Accessoiries
- Welding sockets for various connections
