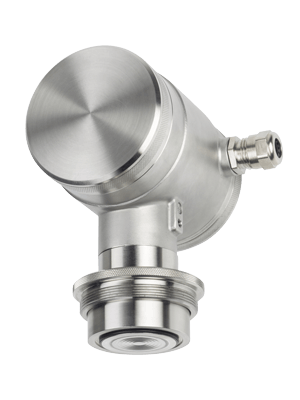

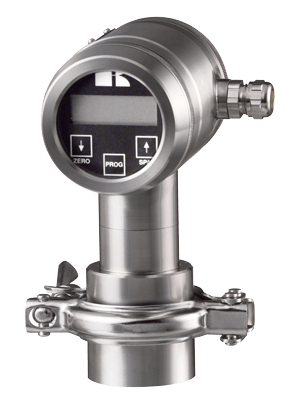

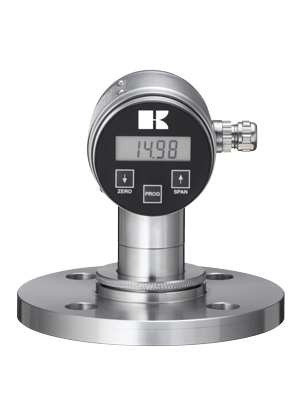

The all stainless series 2000-SAN level transmitter has a flush diaphragm. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry. This microprocessor based transmitter can easily be programmed using the three push buttons and display.
Features
- All stainless steel housing
- Easy adjustable using 3 push buttons, without test pressure
- Strong flush diaphragm
- Active temperature compensation
- Tank Linearisation
Technical details
| Measuring range min. max. | 0,04…100 bar |
| Process temperature | -20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C |
| Accuracy | 0,1 % of adjusted span |
| Process connections | Hygienic connections, flanges and threaded connections, all with flush diaphragm |
| Turn down | 10:1 |
| Output | 4-20 mA 2-wire, option HART protocol |
| Adjustment | Hygienic connections, flanges and threaded connections, all with flush diaphragm |
| Power supply | 12 - 36 Vdc (Ex: 12 - 26,5 Vdc) |
| Protection | IP66 (option: IP68) |
| Ambient temperature | -20 °C...+70 °C |
| Diaphragm material | AISI 316L, option Hastelloy C, Tantalum or Gold plated |
| Wetted parts | AISI 316L |
| Electronics housing | AISI 304, option AISI 316 |
| Certificates/approvals |
Explosion safety: ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia |
Applications
Hydrostatic level measurement of liquids where a flush diaphragm is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.
Accessories
- Welding nipples for several connections
